COR VISION Plus
COR VISION Plus

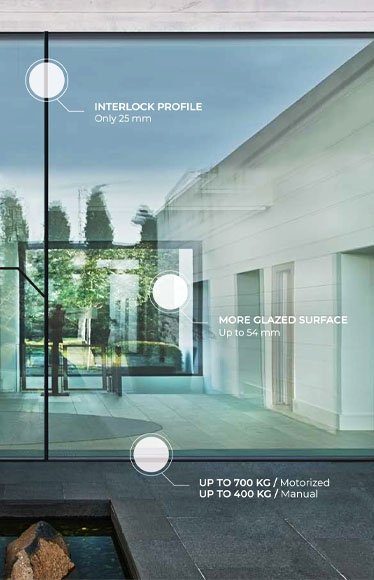

The greatness of minimalism is reflected in this sliding system of large dimensions with sashes of up to 4 meters, interlock sightline of only 25 mm and frames embedded in the perimeter, allowing for a glazed surface of up to 94%. It has a maximum glazing capacity of 54 mm, offering excellent thermal and acoustic performances.
Available with manual (up to 400 kg) or motorized (up to 700 kg) opening system. Additionally, accessibility is favoured by the possibility of hiding the rail and even integrating it fully into the floor.
MAXIMUM SECURITY
Locking system with internal and external key. Embedding of the hardware into the profile with the same minimalist aesthetic.
Improve sales and operations and production planning:
Possibility of powder coating in any color to provide uniformity to the ensemble.
Drainage Solution and Hidden Track Solution
Possibility of embedding the bottom profile and integrate it within the floor finish (pallet, pavement, ceramic…), achieving a transition without any obstacle between the interior and exterior of the room.
Hidden Sash
Allows the concealment of the sashes in the lateral corners
Technic
Sightlines:
Frame 180 mm / 278 mm 3 rails | Sash 69 mm
Polyamide Strip Length:
Frame 40 mm Sash 18 / 32 mm
Profile Thickness:
Door 2,0 mm
Glazing:
Max. 54 mm, Min. 36 mm
Maximum Sash Dimensions:
Width(L) 4000mm, Height(H) 4000mm
*Glazed surface 14m²
Maximum Sash Weight:
400 kg Manual 700 Kg Motorized
