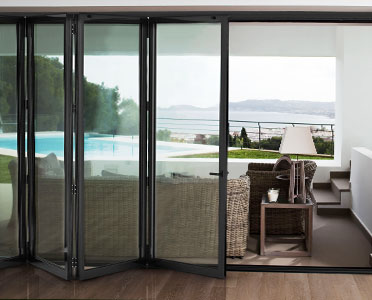

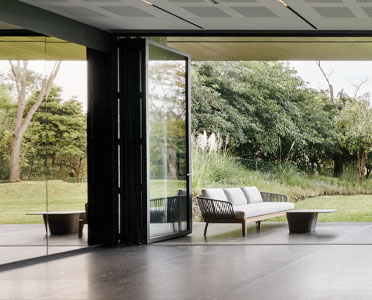

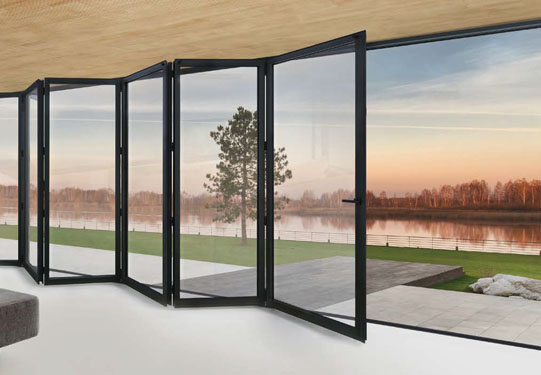

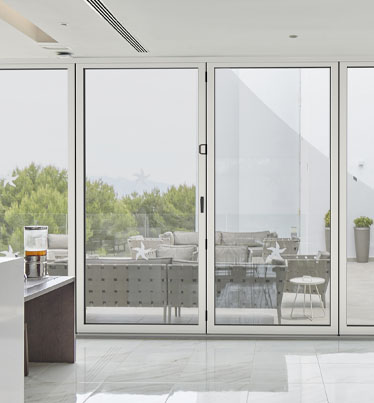

BI - FOLD DOOR
BI - FOLD DOOR
Thermally broken system with 73 mm of frame depth, ideal to divide environments and unify spaces both in residential and commercial buildings.
It has slim sightlines and hidden rollers, showing a clean aesthetic in the closed position. In addition, the flush threshold facilitates accessibility and transit between the interior and exterior.
Bi-Fold Door Systems
It allows multiple combinations of up to 14 sashes that allow to close spans of more than 16 meters wide.
Up to 14 sashes: inward and outward opening
Possibility of either even or odd number of sashes
Option to embed the lower frame in the floor
Technic
Sightlines:
Frame 73 mm, Sash 73 mm
Polyamide Strip Length:
Frame 20 mm Sash 30 mm
Profile Thickness:
Door 1,8 mm
Glazing:
Max. 45 mm, Min. 25 mm
Maximum Sash Dimensions:
Width(L) 1200mm, Height (H)3000mm
Maximum Sash Weight:
120 Kg
