COR VISION
COR VISION
Thermally broken minimalist sliding system that provides maximum luminosity with a minimal aluminium interlock profile.
It has an elegant design only 20 mm sightline and offers the possibility of an inlaid closing system and of hiding the frame along the perimeter.
Sliding Window and Door Systems
Possibility of locking system in the interlock, thus allowing the concealment of the sashes in the frame from a frontal view.
Maximum surface glazing area
Possibility of pocket system
Possibility of embed the bottom, top and lateral frames with in the wall
Possibility of sash encounters at a 90° corner without a mullion

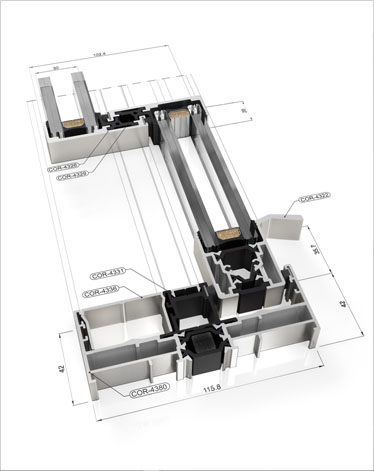

Technic
Sightlines:
Frame 116 mm / 182 mm 3 rails | Sash 37 mm
Polyamide Strip Length:
16 / 24 mm
Profile Thickness:
Door 1,7 mm
Glazing:
Máx. 30 mm, Mín. 26 mm
Maximum Sash Dimensions:
Width(L) 2500mm, Height (H)3000mm
Maximum Sash Weight:
320 Kg
